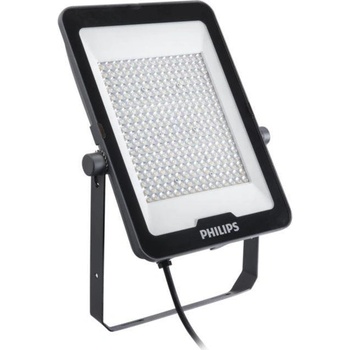

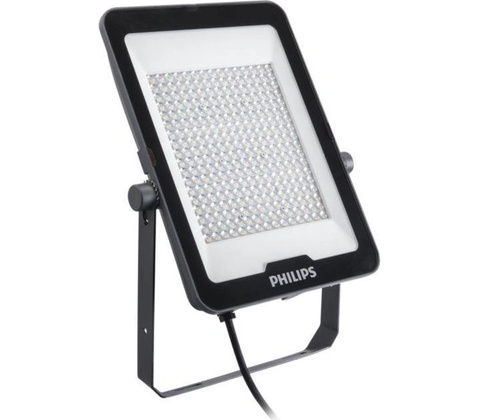

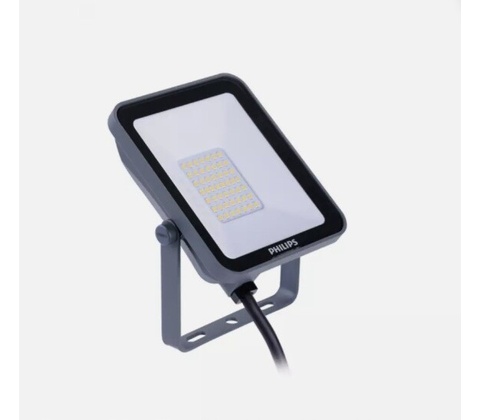

Philips BVP164

Operating and Electrical

Inrush current 3.64 A

Line Frequency 50 or 60 Hz

Input Voltage 220 to 240 V

Initial CLO power consumption - W

Number of products on MCB of 16 A type B 31

Power Consumption 70 W

Connection

Flying leads/wires

Cable

Cable 2.0 m without plug

Average CLO power consumption 70 W

Input Frequency 50 or 60 Hz

Inrush time 0.0222 ms

Power Factor (Fraction) 0.95

End CLO power consumption - W

Over Time Performance (IEC Compliant)

Lumen maintenance at median useful life* 50000 h 80

Control gear failure rate at median useful life 50000 h 5 %

Product Data

EAN/UPC - Case 8719514533769

Full product name

BVP164 LED84/840 PSU 70W SWB CE

Order code 911401855483

Material number (12NC) 911401855483

Numerator - Quantity Per Pack 1

Order product name

BVP164 LED84/840 PSU 70W SWB CE

Full product code 871951453352399

Numerator - Packs per outer box 10

Approval and Application

EU RoHS compliant

Yes

Photobiological risk

Photobiological risk group 1 @200mm to EN62778

Surge Protection (Common/Differential)

Luminaire surge protection level until 4 kV differential mode and 4 kV common mode

Flammability mark -

Ingress protection code

IP65  [Dust penetration-protected, jet-proof]

Protection class IEC

Safety class I

Warranty period 3 years

Mech. impact protection code

IK08  [5 J vandal-protected]

CE mark

Yes

Photobiological risk specification 0.2 m

Sustainability rating -

Glow-wire test

Temperature 650 °C, duration 30 s

ENEC mark -

Controls and Dimming

Driver/power unit/transformer

Power supply unit (ON/OFF)

Constant light output

No

Dimmable

No

Control interface -

General Information

Light source replaceable

No

Light source engine type

LED

Lamp family code -

Driver included

Yes

Service tag

No

Number of gear units 1 unit

Lighting Technology

LED

Mechanical and Housing

Overall length 203 mm

Reflector material

Polycarbonate

Mounting device

Mounting bracket adjustable

Optical cover/lens shape

Flat

Optic material

Glass

Overall width 284 mm

Housing Color

Gray

Optical cover/lens material

Tempered glass

Dimensions (Height x Width x Depth) 29 x 284 x 203 mm

Effective projected area 0.038 m²

Optical cover/lens finish

Clear

Fixation material

Steel

Housing Material

Aluminum die cast

Overall height 29 mm

Application Conditions

Maximum dim level

Not applicable

Performance ambient temperature Tq 25 °C

Initial Performance (IEC Compliant)

Initial chromaticity (0.380, 0.380) SDCM 80

Upward light output ratio

Flickering value (PstLM) 1

Optic type outdoor

Symmetrical wide beam

Luminous Efficacy (rated) (Nom) 120 lm/W

Light source color 840 neutral white

Optical cover/lens type

Glass

Standard tilt angle posttop -

Standard tilt angle side entry -
